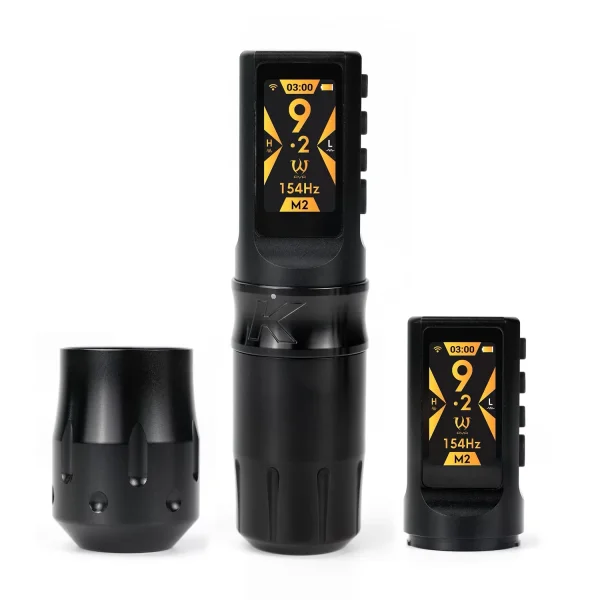

AVA - Wireless Tattoo Pen - UNI-K - Black - 2x Power Pack

AVA - Wireless Tattoo Pen - UNI-K - Black - 2x Power Pack

SKU: 17922A
Category: AVA
Manufacturers: AVA

Price on request

Item available

Piece

Description

The AVA Uni-K Wireless Tattoo Pen is a wireless tattoo machine for professional use when you want to combine a direct, predictable running behavior with flexible tuning. At its core is the brushless motor with direct drive (Direct Drive), which transfers power constantly to the needle and is designed for reduced wear at the same time. This keeps your setup stable even during longer sessions – from clean lines to even transitions.

Especially practical for everyday use: The stroke can be adjusted internally in defined stages from 2.5 to 5.0 mm. This allows you to tailor the pen specifically to your technique and the respective area – shorter for controlled work, longer for more punch when filling. In addition, two torque modes (High Torque / Low Torque) are available to noticeably change the response: more pull for more demanding configurations or a softer feeling for calm passages.

On the 1.47” OLED color display you have the most important values directly in view: voltage, frequency, timer, battery level as well as memory slots (M1/M2) for recurring setups. It is controlled via buttons with fine and coarse adjustment – ideal if you want to readjust quickly without interrupting your workflow. Thanks to Bluetooth, you can also use the pen with a compatible foot switch.

With two interchangeable 18500 lithium-ion batteries (1600 mAh each), you are well equipped for mobile studio operation: swap the battery, keep working. You can find suitable additions at Body Cult under tattoo machines, the matching modules under tattoo needles, and equipment/parts under tattoo machines equipment and spare parts.

Product type: Wireless Tattoo Pen
Motor: brushless direct drive
Speed: up to 10500 RPM
System: Direct Drive
Stroke: 2.5 / 3.5 / 4.0 / 4.5 / 5.0 mm internally adjustable
Needle depth: 0–5 mm
Operating voltage: 5–12 V
Power consumption: 5 W
Torque modes: High Torque and Low Torque
Display: 1.47” OLED color display
Functions: voltage, frequency, timer, battery level, memory slots (M1/M2)
Control: button operation with fine and coarse adjustment
Battery: 2 × 18500 lithium-ion
Battery capacity: 1600 mAh per battery
Battery life: up to approx. 7–8 hours
Charging voltage: 5V/2A
Connectivity: Bluetooth (compatible with foot switch)
Material: aluminum
Length: 127 mm
Diameter: 32 mm
Weight: 218 g
Grip options: 32 mm and 39 mm
Scope of delivery: pen, 2 batteries, 2 grips, USB-C cable, adjustment tools, transport case, operating instructions

FAQ

What is the internally adjustable stroke from 2.5 to 5.0 mm good for in everyday studio work?

You can tune the Uni-K to different applications without changing the machine: shorter stroke lengths for controlled lines and details, longer stroke lengths for more pressure when shading and color fills.

What is the difference between High Torque and Low Torque?

With High Torque you get a stronger performance characteristic for more pull, e.g. with larger configurations or solid packing. Low Torque generally feels softer and supports calmer, more controlled work.

What information does the OLED display show and what are the memory slots for?

The display shows voltage, frequency, timer, battery level, and the memory slots M1/M2. Via M1/M2 you can save frequently used settings and quickly recall them when needed.

How long can I work wirelessly and how is the pen charged?

With the two 18500 lithium-ion batteries (1600 mAh each), up to approx. 7–8 hours of runtime are possible depending on the way you work. It is charged via USB-C with 5V/2A.

Item information	Value
Color:	Black
Machine Type:	Pen
Connection:	Battery
Stroke:	4,5 mm
